Canvas

The Canvas is the central workspace of the modeler, powered by React Flow. It is where you visually build and arrange your workflow.

Navigation

The modeler uses a Figma-like gesture scheme for canvas navigation. This keeps the left mouse button free for selection while providing intuitive panning and zooming with the scroll wheel and modifier keys.

Panning

• Mouse wheel / trackpad scroll: Scroll in any direction to pan the canvas. This is the primary way to move around the workspace.
• Middle-click drag or right-click drag: Click and drag with the middle or right mouse button to pan.
• Space + drag: Hold Space and drag with the left mouse button to pan (hand tool).

The canvas is infinite in all directions.

Zooming

• Ctrl + Mouse wheel (Cmd + wheel on Mac): Zoom in and out.
• Pinch-to-zoom: Use a trackpad pinch gesture to zoom.
• Zoom controls: Use the + and - buttons in the Canvas Toolbar.
• Fit to screen: Click the fit-to-screen button in the Canvas Toolbar to automatically zoom and pan so that all nodes are visible.

Selecting elements

Single selection

Click on a node or edge to select it. The Property Panel will open automatically on the right.

Multi-selection

• Left-click + Drag on the canvas background: Draw a selection rectangle to select multiple elements. Partially overlapped elements are included.
• Shift + Click: Add or remove individual elements from the selection.

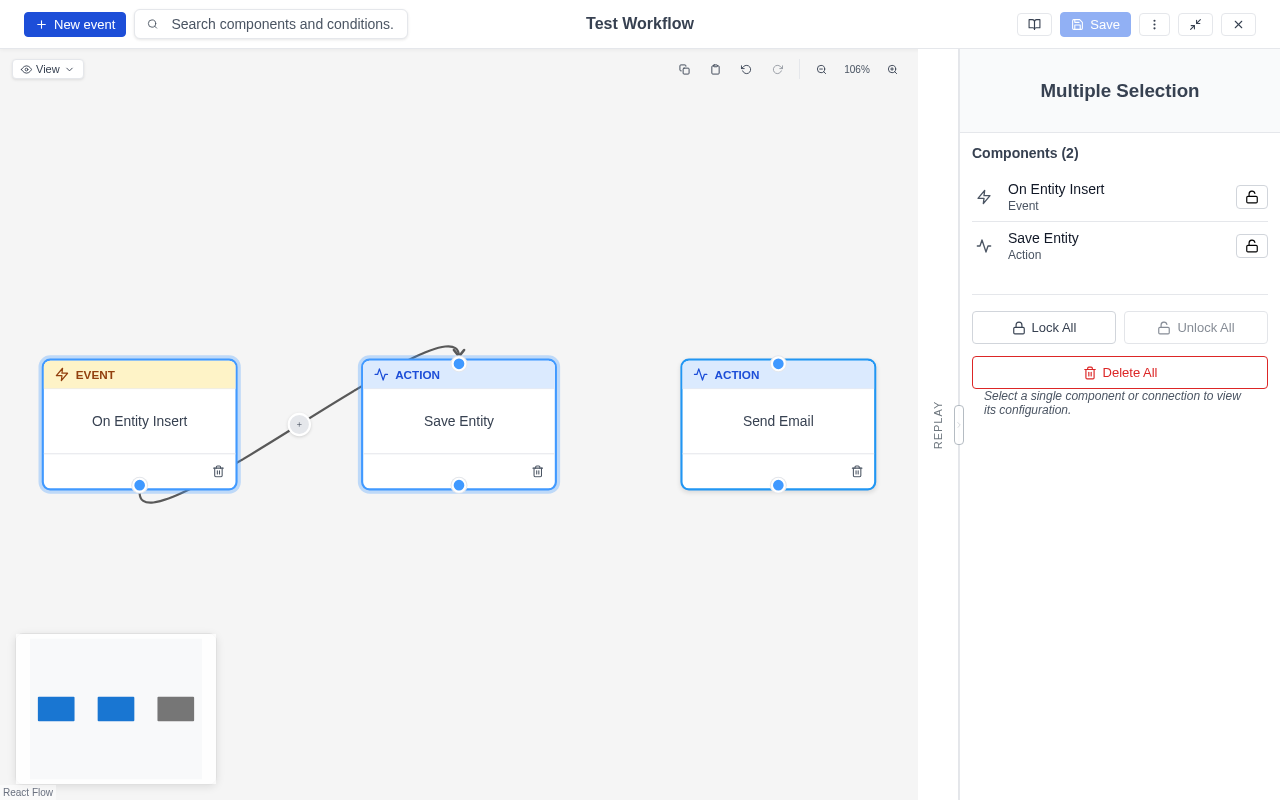

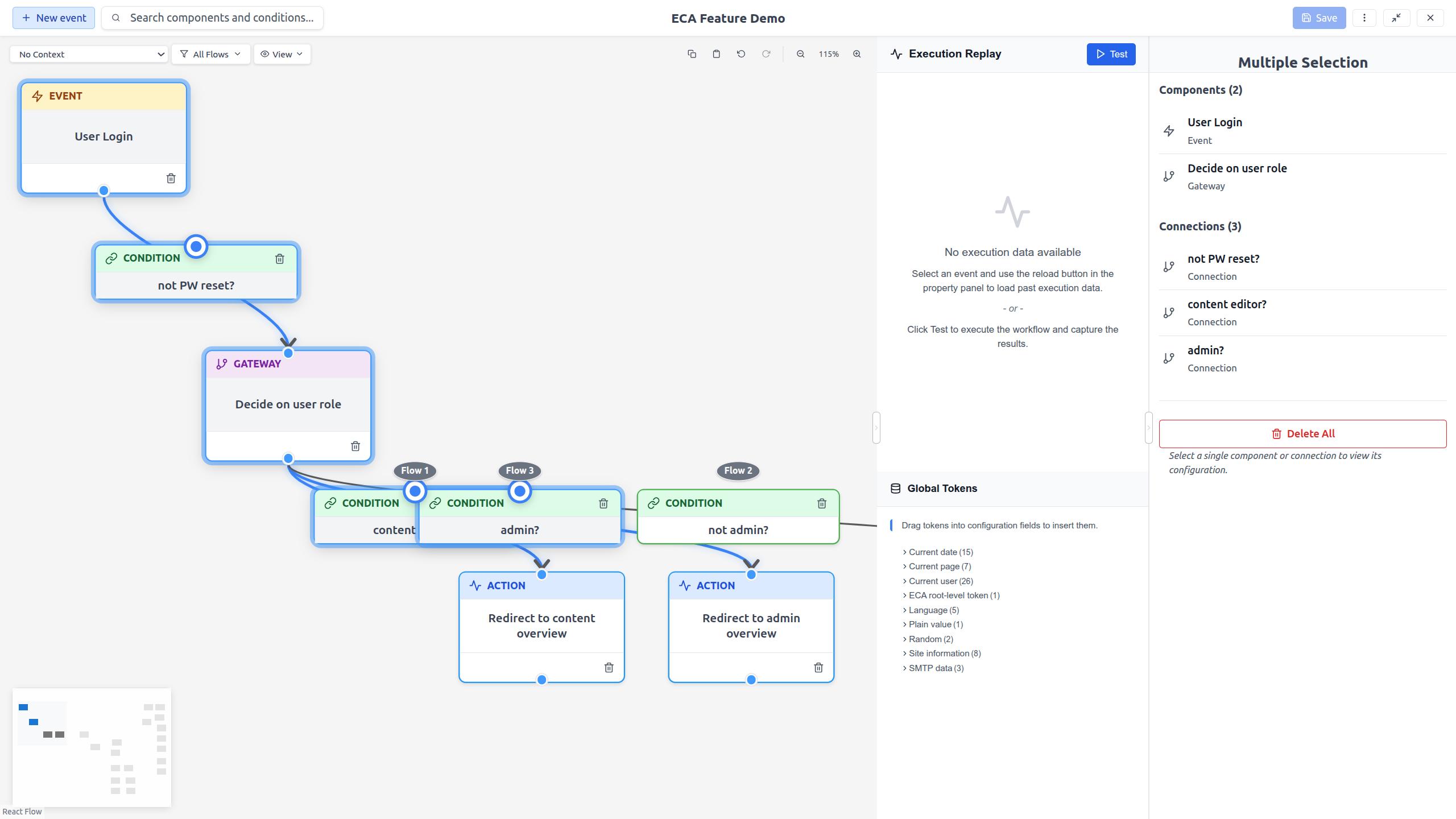

When multiple elements are selected, the Property Panel shows a Multi-Selection Panel with bulk operations (delete all).

Deselecting

Click on an empty area of the canvas to deselect all elements.

Adding elements

There are two ways to add elements to the canvas:

Quick-add buttons

Hover over a node to reveal a + button. Clicking it opens a popup where you can choose a successor component (action, gateway, or condition). The popup includes a collapsible type filter to narrow by component type. Selecting an action or gateway creates and connects a new node. Selecting a condition creates a placeholder node with the condition pre-attached to the edge.

Similarly, hover over an edge to reveal a + button for adding a condition.

Event button

Click the + Event button in the toolbar to add a new event (start) node. The canvas automatically pans to center the new node in the viewport.

Connecting elements

To create an edge (connection) between two nodes:

1. Hover over the source node to reveal its output port (a small circle on the bottom or right of the node).
2. Click the output port and drag to the input port of the target node.
3. Release to create the connection.

Node types

The canvas displays four visual node types:

Node Type	Shape	Description
Event (start)	Rounded	Triggers that start a workflow (e.g., "Entity insert").
Element (action)	Rectangle	Actions that perform work (e.g., "Send email").
Gateway	Diamond	Decision points that control flow branching.
Subprocess	Double-bordered rectangle	References to other workflow models.
Placeholder	Dashed amber rectangle	Temporary node awaiting action/gateway assignment.

Edge types

Edges can be:

• Simple connections: A direct link from one node to another.
• Conditional edges: Edges with a condition attached, shown with a label.

Snap to grid

All nodes snap to a 20px grid for consistent alignment. This keeps workflows looking clean and professional.

Smart node positioning

When you add a node using quick-add or the event button, the canvas automatically pans to center the new node in the viewport with a smooth animation. The modeler also finds a free position that:

• Does not overlap with existing nodes.
• Stays within the boundaries of the current workflow flow.
• Shifts neighboring flows if needed to make room.

This means you rarely need to manually reposition nodes.
