OpenID Connect

In case you want to connect your WissKI to some Identity Provider (IdP) to enable users to login with federated accounts, this howto will guide you to though the process on how to set up an IdP and connect your WissKI via OpenID Connect (OIDC).

Requirements

• A running Drupal/WissKI instance with
  • Shell access (e.g. though SSH or direct access to Docker container)
  • composer installed
  • (optional) drush installed
• A running external IdP (we will use Keycloak in this example)

Keycloak Steps

1. Follow the Keycloak documentation to set up a new Realm.
2. Create a new Client in this realm:
   • General Settings:
     • Client Type: OpenID Connect
     • Client ID: usually the full URL of your Drupal/WissKI instance e.g. https://my.wisski.my-domain.com
     • You can leave the rest empty/as is

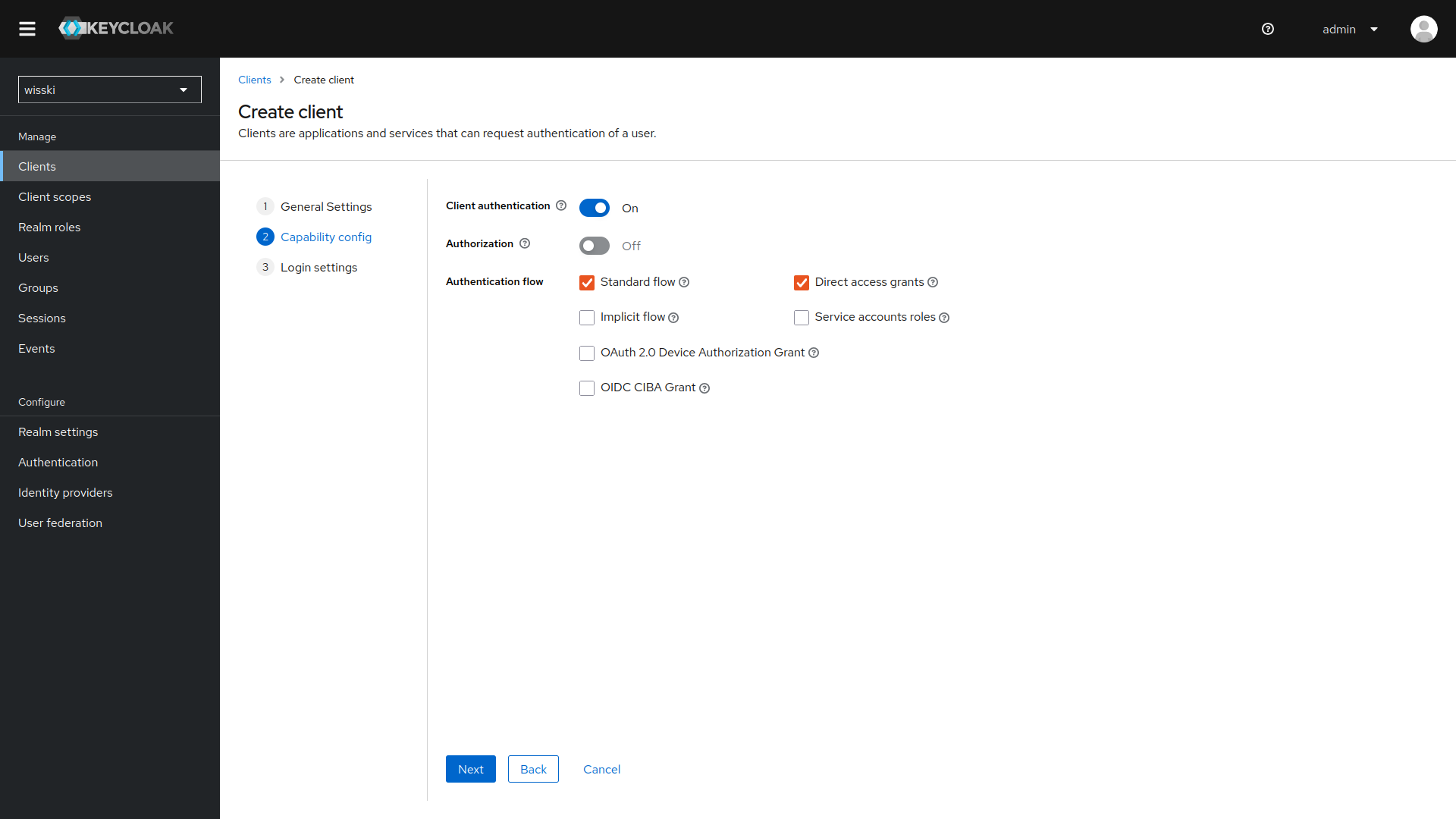

   • Capability Config:
     • Turn Client authentication on
     • leave rest as is

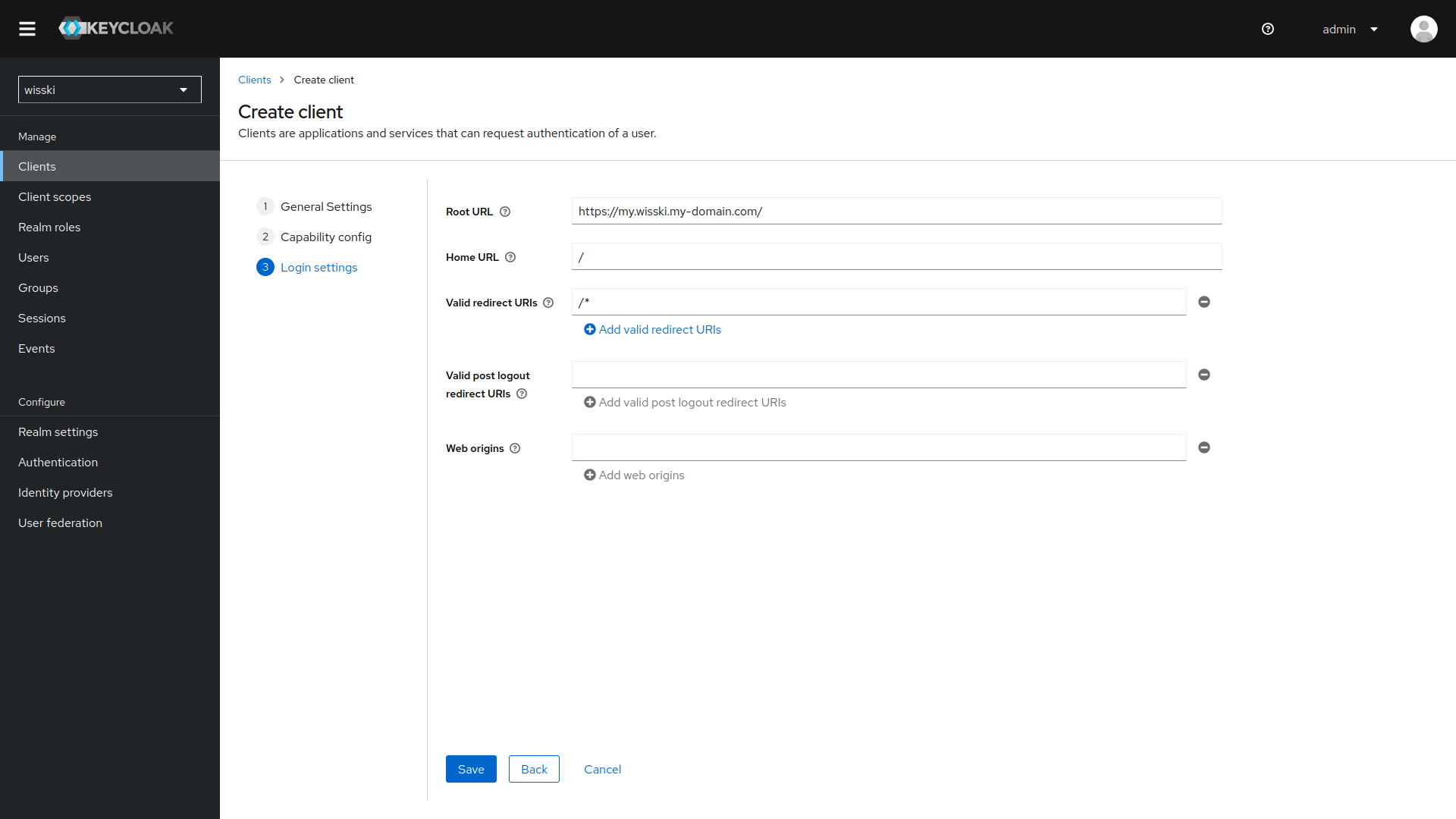

   • Login Settings:
     • Root URL: set the Domain of your Drupal/WissKI instance
     • Home URL: /
     • Valid redirect URLs: /*
     • leave rest as is
3. After you have created the client select it in the client list, navigate to the Credentials tab and copy the Client Secret for later use.

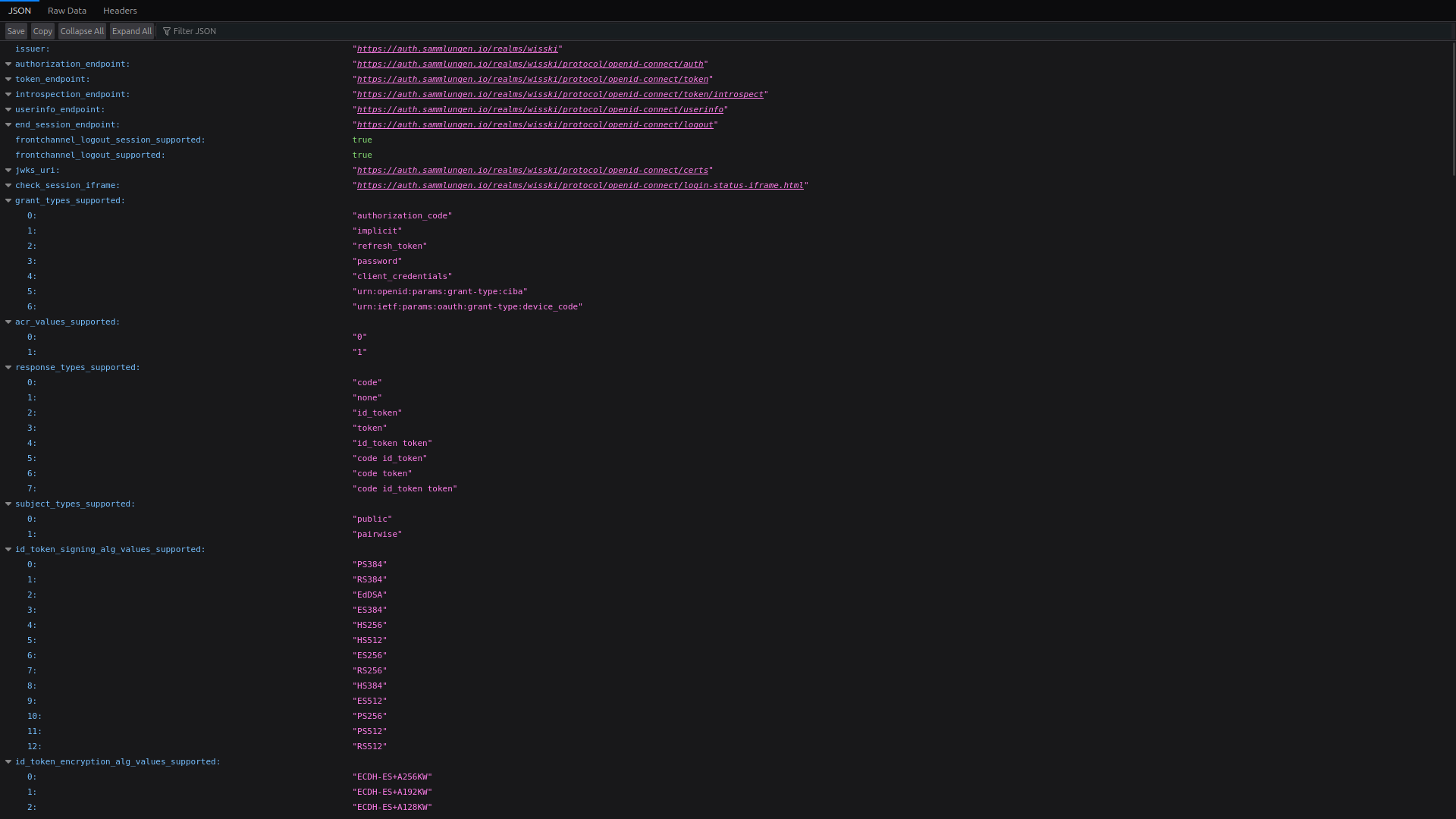

4. Also open the OpenID Endpoint Configuration in a new tab. (You can find this by Clicking on Realm settings on the left sidebar, then scrolling down to the Endpoints section and clicking on OpenID Endpoint Configuration (You can also just visit realms/REALM_NAME/.well-known/openid-configuration on your Keycloak, where REALM_NAME is the name you chose for the realm you created). This should open a page that displays a JSON file containing information about the endpoint and should look like this:

WissKI/Drupal Steps

1. Get into the console
2. Download the OpenID Connect/OAuth Client Module using composer
   • usually composer require drupal/openid_connect should to the trick
3. Enable the module using drush: drush en openid_connect (Alternatively you can enable it though the Extend interface in Drupal https://my.wisski.my-domain.com/admin/modules)

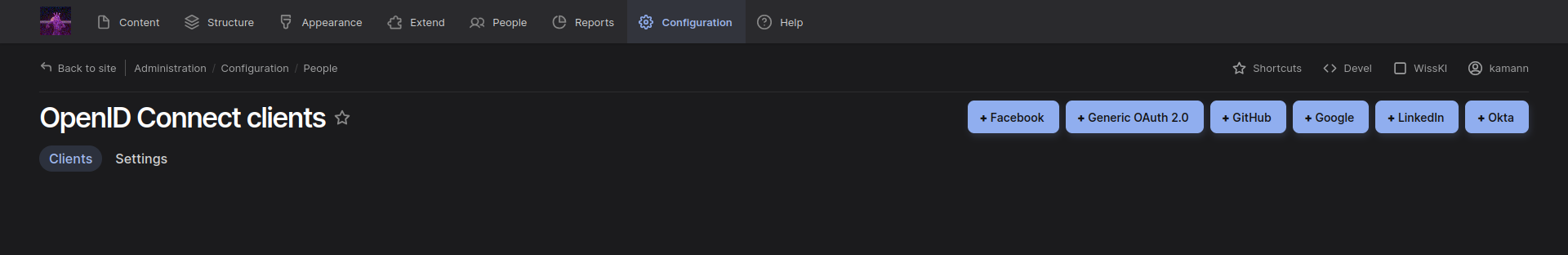

4. Configure the OIDC module: https://my.wisski.my-domain.com/admin/config/people/openid-connect
   • Add a new Generic Oauth 2.0 Client
   • Configuration:
     • Name: Will be displayed on the login page
     • Client ID: Use the Client ID you set in the Keycloak client
     • Client secret: The secret you copied from earlier
     • Allowed domains: *
     • Endpoints: Copy the values from the OpenID Endpoint Configuration you have open in another tab.
     • Scopes: openid email groups
5. In the Drupal OpenID Connect Settings (admin/config/people/openid-connect/settings) set OpenID buttons display in user login form to either replace the default login on the login page, or be displayed above, or below the default login fields.
6. In case you have any roles in the Keycloak that you want to map to Drupal roles you can do that in the EXPERIMENTAL - User role mapping section.
