Edges & Conditions

Edges are the connections between nodes. They define the flow of execution through your workflow and can optionally carry conditions.

Creating edges

Manual connection

1. Hover over the source node to reveal its output port (a small circle).
2. Click the output port and drag to the target node's input port.
3. Release to create the edge.

Automatic connection (quick-add)

When you add a node via the quick-add + button, an edge is automatically created connecting the source node to the new node.

Condition-first connection

You can also create a conditional edge by selecting a condition from a node's quick-add popup. This creates both an edge (with the condition pre-attached) and a placeholder node as the target. Replace the placeholder with a real action or gateway afterwards.

Edge types

Simple edges

A direct connection from one node to another with no condition. Execution always flows through a simple edge.

Conditional edges

Edges can have a condition attached. Conditions evaluate to true or false during execution:

• If the condition passes, execution continues to the target node.
• If the condition fails, execution does not follow that edge.

Conditional edges display the condition name as a label on the edge.

Annotations on edges

Any edge (simple or conditional) can have an annotation -- a documentation note stored as part of the edge data.

Adding a condition to an edge

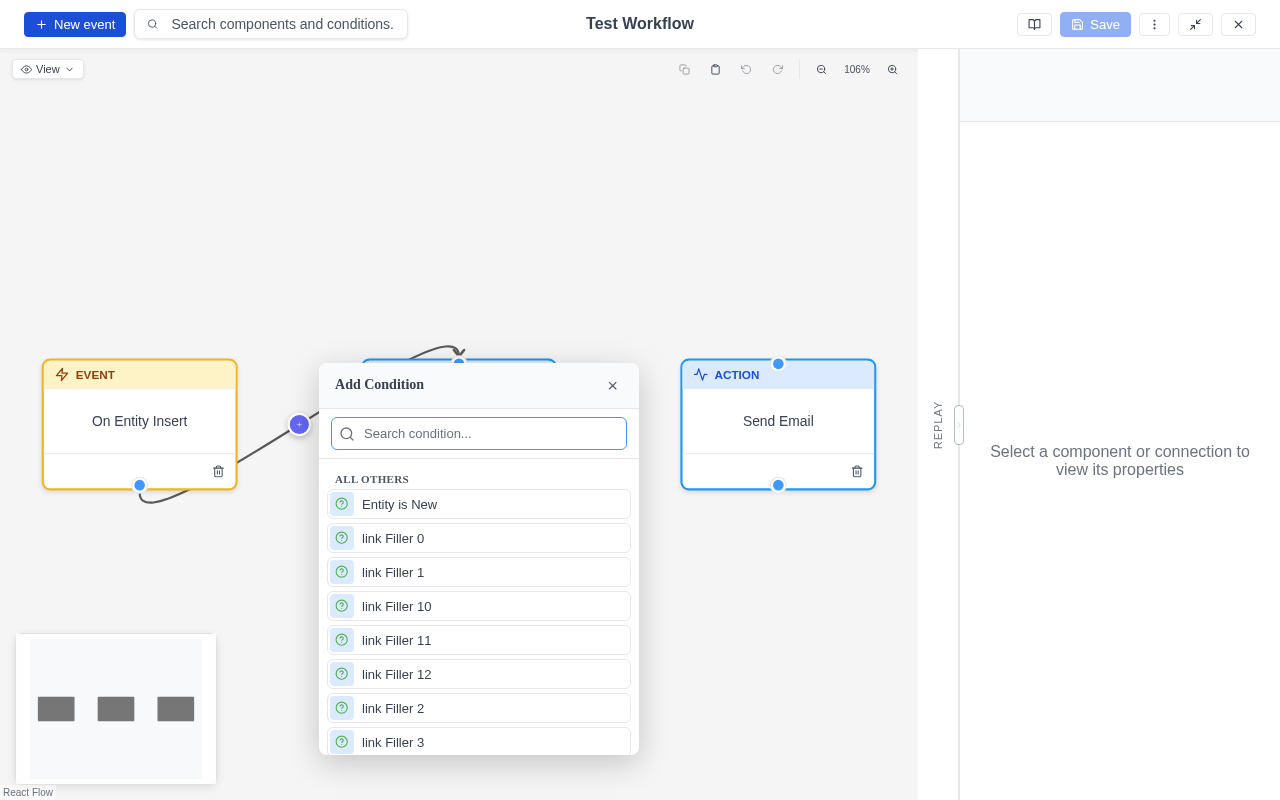

1. Hover over an edge to reveal the + (quick-add condition) button.
2. Click the button to open a popup with available conditions.
3. Select a condition. It is attached to the edge.

Alternatively, select an edge by clicking on it and configure the condition in the Property Panel.

Condition-first authoring

You can also add a condition before choosing the target action. Use the + button on a node and select a condition from the popup. See Nodes > Quick-add successor for details.

Configuring edges

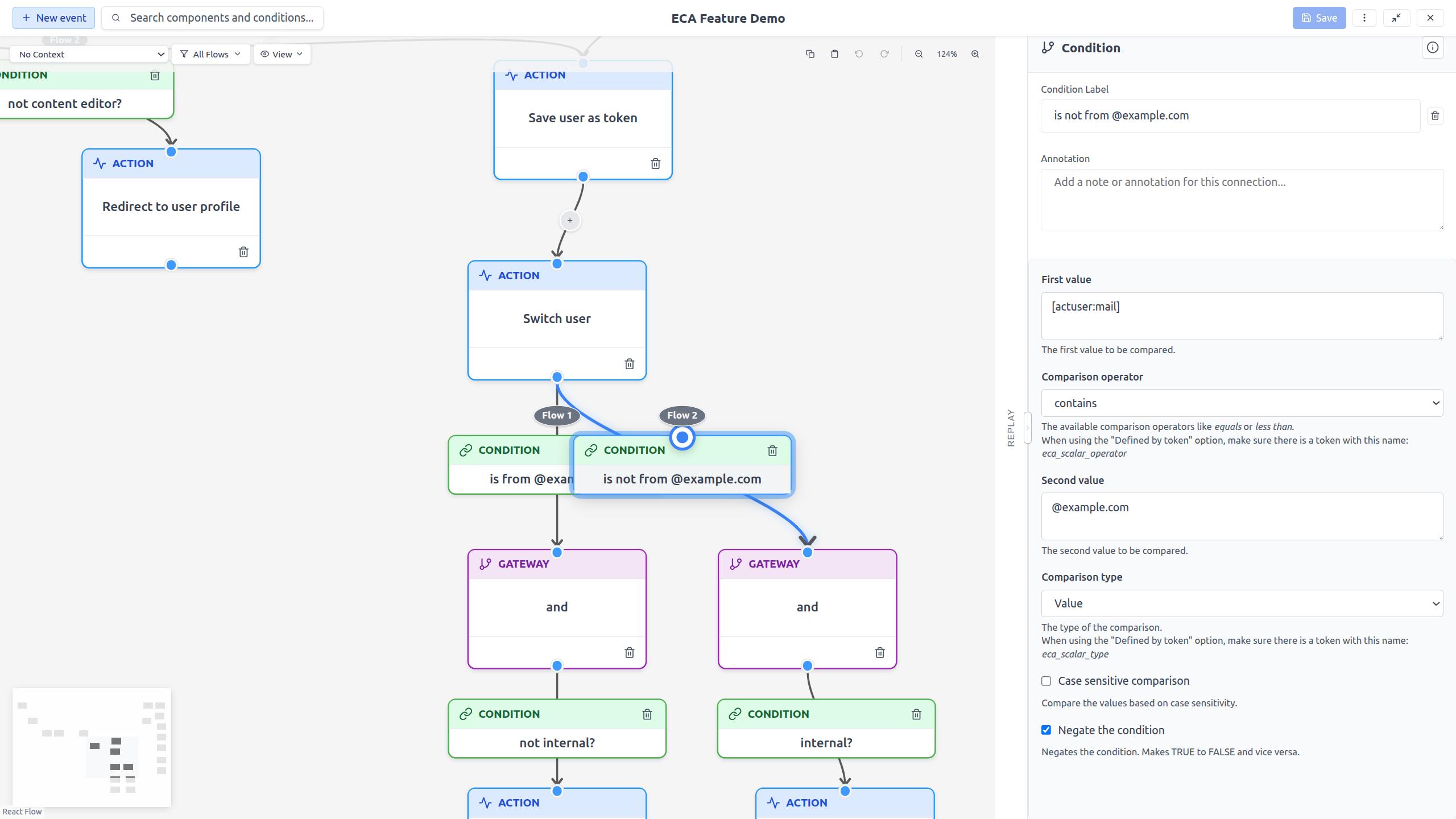

Click an edge to select it. The Property Panel shows:

• Label: The edge's display label (editable inline).
• Condition: The attached condition plugin and its configuration form.
• Annotation: An optional documentation note.

Edge order

When a node has multiple outgoing edges, the order matters -- it determines the sequence in which conditions are evaluated. Each edge displays a "Flow N" badge (e.g., "Flow 1", "Flow 2") showing its position.

Changing edge order

There are two ways to reorder edges:

• Click the badge: Click a "Flow N" badge to open a dropdown listing all available positions. Select a different position to swap. The dropdown supports keyboard navigation (Enter/Space to toggle, Escape to close).
• Drag the badge: Drag a flow badge and drop it on another badge to swap positions.

Deleting edges

Select an edge and press Delete. This removes the connection but leaves both nodes in place.

If a condition is attached, it is also removed with the edge.

Visual indicators during replay

During execution replay, edges show visual indicators:

• Green checkmark: The condition passed and execution flowed through.
• Red X: The condition failed and execution did not follow this edge.

See Replay & Testing for more details.
