Modeler for Drupal

The Modeler module provides a modern, React-based visual workflow editor for Drupal. Built on React Flow, it offers a professional visual interface for creating and editing workflow models -- complete with real-time configuration, execution replay, live testing, and full keyboard accessibility.

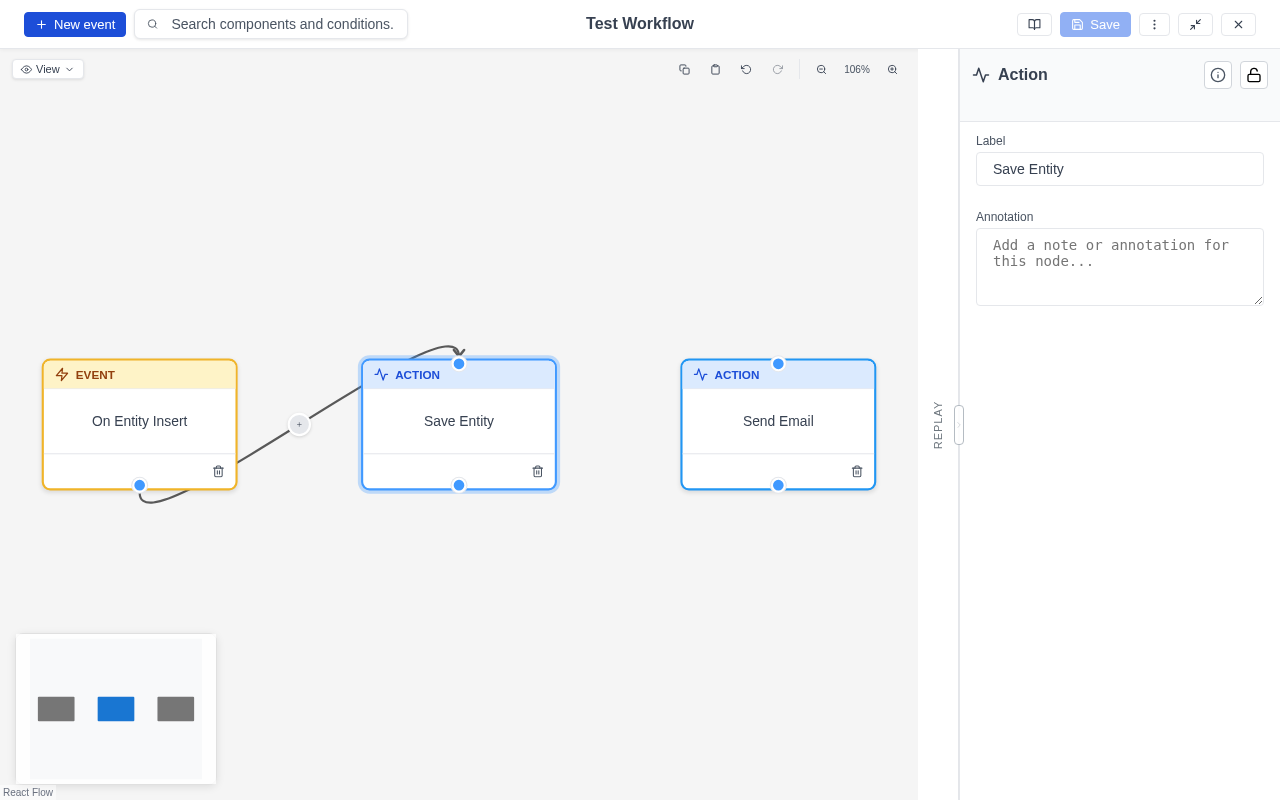

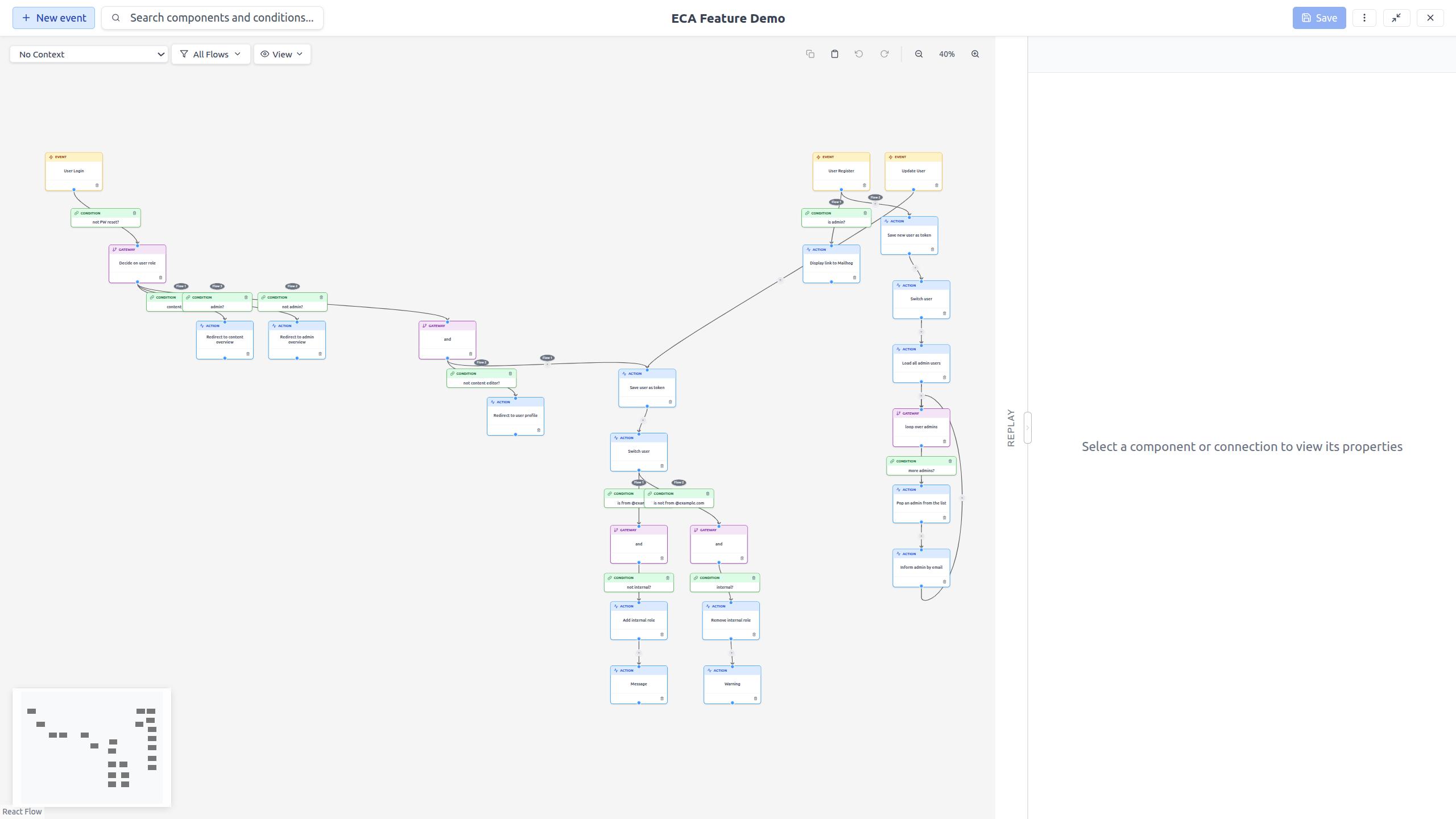

The Modeler canvas showing a sample workflow with event, action, and condition nodes connected by edges

Who is this for?

This documentation is for end users -- site builders and administrators who use the visual modeler to create and manage workflows in Drupal (for example, ECA models). If you are a developer looking to build or extend the modeler itself, see the UI Development section.

Key features

Feature Description
Visual workflow editing Place nodes on a canvas using quick-add buttons, connect them with edges, and configure each component through dynamic forms.
Execution replay Load past execution data, step through it visually on the canvas, and inspect token values at each step.
Live testing Trigger a workflow execution from the modeler and see the results immediately.
Quick-add Hover over a node to add a successor, or hover over an edge to add a condition -- with context-aware filtering.
Undo/Redo Step back and forward through editing history with Ctrl+Z / Ctrl+Shift+Z or toolbar buttons.
Keyboard shortcuts Full keyboard navigation: copy/paste, undo/redo, delete, search, and more.
Dark mode Toggle between light and dark themes, persisted across sessions.
Annotations Add notes to any node or edge for documentation purposes.
Search Find nodes and edges by label, plugin, type, or ID with live highlighting.
Flow filtering When multiple event flows exist, filter the canvas to show only the flows you need.
Export Export models as Drupal recipes, archives, JSON (for the standalone viewer), or SVG images.
Standalone viewer Embed a read-only workflow viewer in any web page -- no Drupal required.
View modes Switch between fullscreen and floating-window mode; drag and resize the modeler window.
Permissions Granular permission controls for editing metadata, templates, testing, and replay.
Accessibility WCAG AA compliant with screen reader support, focus management, and respect for motion/contrast preferences.

Architecture at a glance

The Modeler module is a plugin implementation for the Modeler API module. The Modeler API defines the framework for visual modelers in Drupal, while this module provides the actual React Flow-based editing experience.

Architecture overview: Model Owner provides Config Entity and Components, Modeler API provides Api Service and Save/Load, Modeler provides React Flow UI and Canvas/Panels

Requirements

  • Drupal ^11.3
  • Modeler API module (modeler_api) version ^1.1
