Creating and Managing Workflows

Workflows are the core of FlowDrop. This guide covers how to create, edit, and manage workflows through the Drupal admin interface.

Accessing the Workflow List

Navigate to Administration > FlowDrop > Workflows (/admin/flowdrop/workflows).

This page shows all existing workflows with their label, status, and available actions.

Workflow listing page

Creating a Workflow

  1. Click + Add Workflow.
  2. Fill in the form:
  3. Label (required) — A human-readable name for the workflow.
  4. Description (optional) — Notes about what the workflow does.
  5. Click Save.

Add Workflow form

The workflow is now created and ready to be edited in the visual editor.

Opening the Visual Editor

From the workflow listing, click the dropdown on a workflow row and select Open in Editor. This opens the drag-and-drop visual editor where you build your workflow.

The editor URL follows the pattern: /admin/structure/flowdrop-workflow/{id}/flowdrop-editor

For a detailed guide on using the editor, see the Visual Editor page.

Editing Workflow Metadata

To change the label or description of an existing workflow:

  1. From the workflow listing, click Edit on the workflow row.
  2. Modify the label, description, or status.
  3. Click Save.

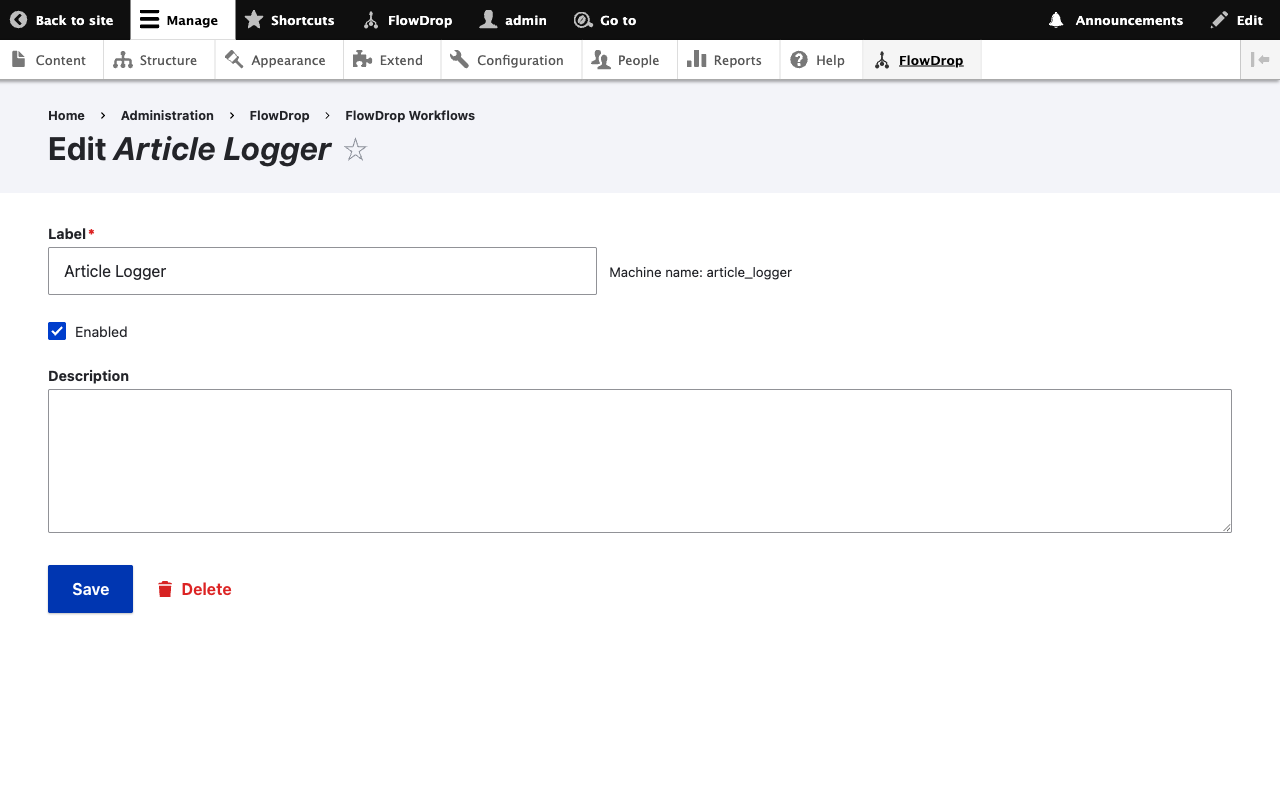

Edit workflow form

Workflow Properties

Property Description
Label Human-readable name displayed in listings and the editor
Description Optional notes about the workflow's purpose
Status Enabled or disabled — disabled workflows cannot be executed or triggered
Nodes Array of node definitions (managed via the visual editor)
Edges Array of connections between nodes (managed via the visual editor)

Deleting a Workflow

  1. From the workflow listing, click the dropdown and select Delete.
  2. Confirm the deletion.

Warning

Deleting a workflow also removes any associated trigger configurations. Existing pipeline history (past execution records) is retained but will reference a deleted workflow.

Workflow Actions

The operations dropdown on each workflow row provides quick access to common actions:

Workflow action dropdown

Action Description
Edit Modify label, description, and status
Open in Editor Open the visual drag-and-drop editor
Playground Open the interactive testing interface (requires flowdrop_playground module)
Delete Permanently remove the workflow

Importing and Exporting Workflows

Workflows are stored as Drupal configuration entities, which means they can be exported, imported, and version-controlled using Drupal's standard configuration management system.

Exporting a Workflow

Use Drush to export workflow configuration:

# Export all site configuration (includes workflows)
drush config:export

# Export a single workflow
drush config:get flowdrop_workflow.flowdrop_workflow.{workflow_id}

Exported workflows are stored as YAML files in your site's config sync directory (typically sites/default/files/config_*/sync/).

Importing a Workflow

# Import all site configuration (includes workflows)
drush config:import

# Import a single workflow from a YAML file
drush config:set flowdrop_workflow.flowdrop_workflow.{workflow_id} --input-format=yaml < workflow.yml

Moving Workflows Between Environments

To move workflows from development to staging or production:

  1. Export configuration on the source environment: drush config:export
  2. Transfer the config sync directory to the target environment (e.g., via Git).
  3. Import configuration on the target environment: drush config:import

Tip

Include your config sync directory in version control. This lets you track workflow changes alongside your codebase and deploy them through your standard CI/CD pipeline.

Permissions

Permission What it allows
administer flowdrop Full access to create, edit, delete, and execute workflows
