Troubleshooting¶

Common issues and how to resolve them.

Workflow Editor Issues¶

I don't see any nodes in the palette¶

Clear the cache: drush cr
Check modules: Verify that flowdrop_node_processor is enabled at Administration > Extend (/admin/modules).
Check node types: Verify node types exist at Administration > Structure > FlowDrop Node Type (/admin/structure/flowdrop-node-type). If the list is empty, reinstall the flowdrop_node_processor module.

I can't connect two ports¶

Check data type compatibility: Port colors must match (or use "mixed" type ports). See Connecting Nodes for the full compatibility rules.
Check direction: You must drag from an output port (right side) to an input port (left side). Input-to-input or output-to-output connections are not allowed.
Check port type: Data ports connect to data ports, trigger ports connect to trigger ports. You cannot mix them.

My changes aren't saving¶

Click Save: Changes are not auto-saved. Click the Save button in the editor toolbar.
Check browser console: Open browser developer tools (F12) and look for JavaScript errors that may indicate a problem.
Clear Drupal cache: Run drush cr and reload the editor page.

Execution Issues¶

My workflow isn't running¶

Check workflow status: The workflow must be enabled (status = true). Edit the workflow and verify its status.
Check pipelines: View recent pipelines at Administration > FlowDrop > Pipelines (/admin/flowdrop/pipelines) to see if an execution was attempted.
Check logs: Look for errors in Drupal's log:
```
drush watchdog:show --type=flowdrop
```

A node shows "failed" status¶

View the job details: Click on the failed job in the pipeline detail page to see the error message.
Common causes:
- Missing required parameters (a required input port has no connection and no default value)
- External service errors (for HttpRequest or AI nodes)
- Entity not found (for EntityQuery or EntityContext nodes)
- Permission issues

Failed job detail

Async workflows are stuck¶

If workflows executed with the asynchronous orchestrator appear stuck:

Process the queues manually:

drush queue:run flowdrop_runtime_pipeline_execution
drush queue:run flowdrop_runtime_job_execution

Check that cron is running: Async workflows depend on Drupal's queue system, which is processed during cron runs. Verify cron is configured and running.
Check queue status:
```
drush queue:list
```

Trigger Issues¶

My trigger isn't firing¶

Check workflow is enabled: The workflow referenced by the trigger must have status = true.
Check trigger config is enabled: Review trigger configurations at Administration > Structure > FlowDrop Trigger (/admin/structure/flowdrop-trigger).
Verify conditions match: For entity triggers, ensure the entity type and bundle conditions match the actual entity being created/updated.
Check trigger settings: Review global trigger settings at /admin/flowdrop/triggers/settings.

Check logs:

drush watchdog:show --type=flowdrop_trigger

Orphan trigger configurations¶

If you see log warnings like Trigger @trigger references non-existent workflow @workflow, this means a trigger configuration points to a deleted workflow. Delete the orphan trigger at Administration > Structure > FlowDrop Trigger.

Monitoring¶

Where to find execution results¶

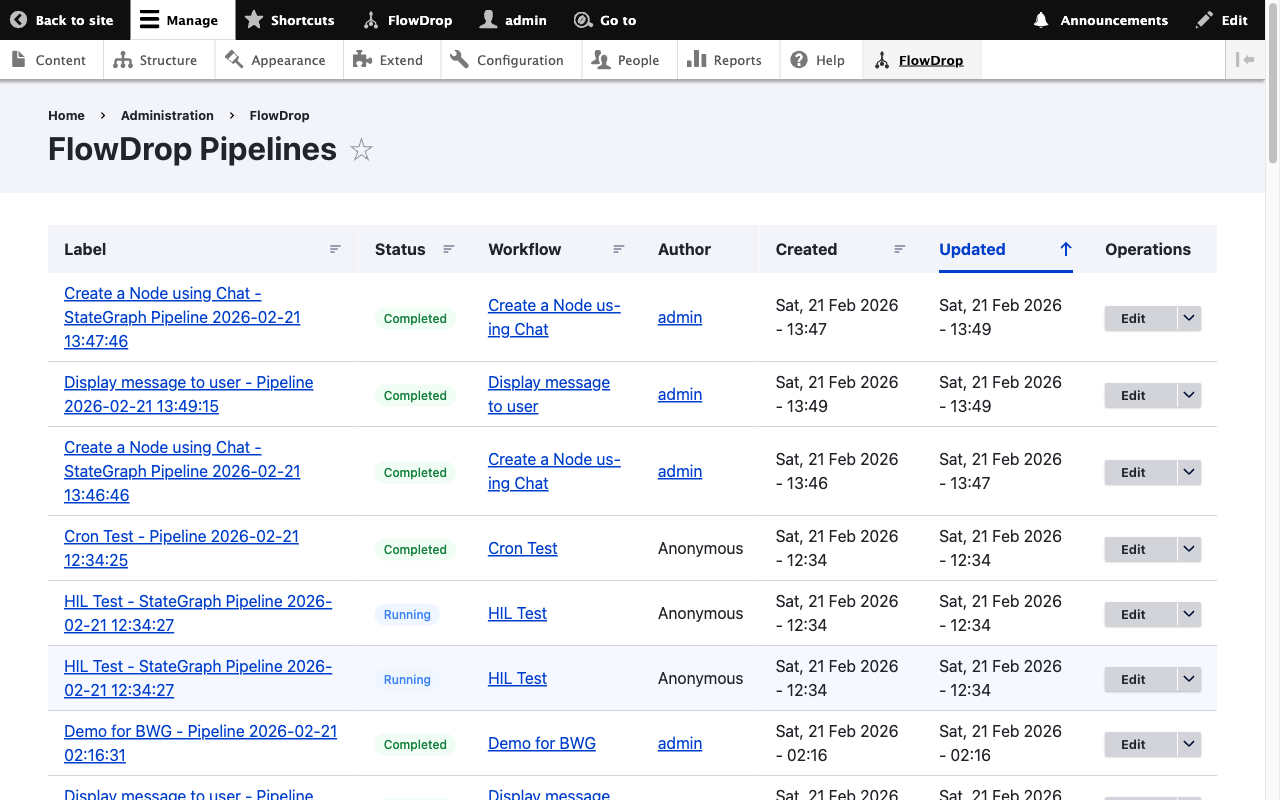

Pipeline listing page

What you need	Where to find it
All pipeline runs	Administration > FlowDrop > Pipelines (`/admin/flowdrop/pipelines`)
Individual job details	Click on a pipeline, then click on a specific job
Drupal watchdog logs	Reports > Recent log messages (`/admin/reports/dblog`)
FlowDrop-specific logs	Filter by type `flowdrop` in watchdog

Checking logs via Drush¶

# All FlowDrop logs
drush watchdog:show --type=flowdrop

# Trigger-specific logs
drush watchdog:show --type=flowdrop_trigger

# Recent errors only
drush watchdog:show --severity=error

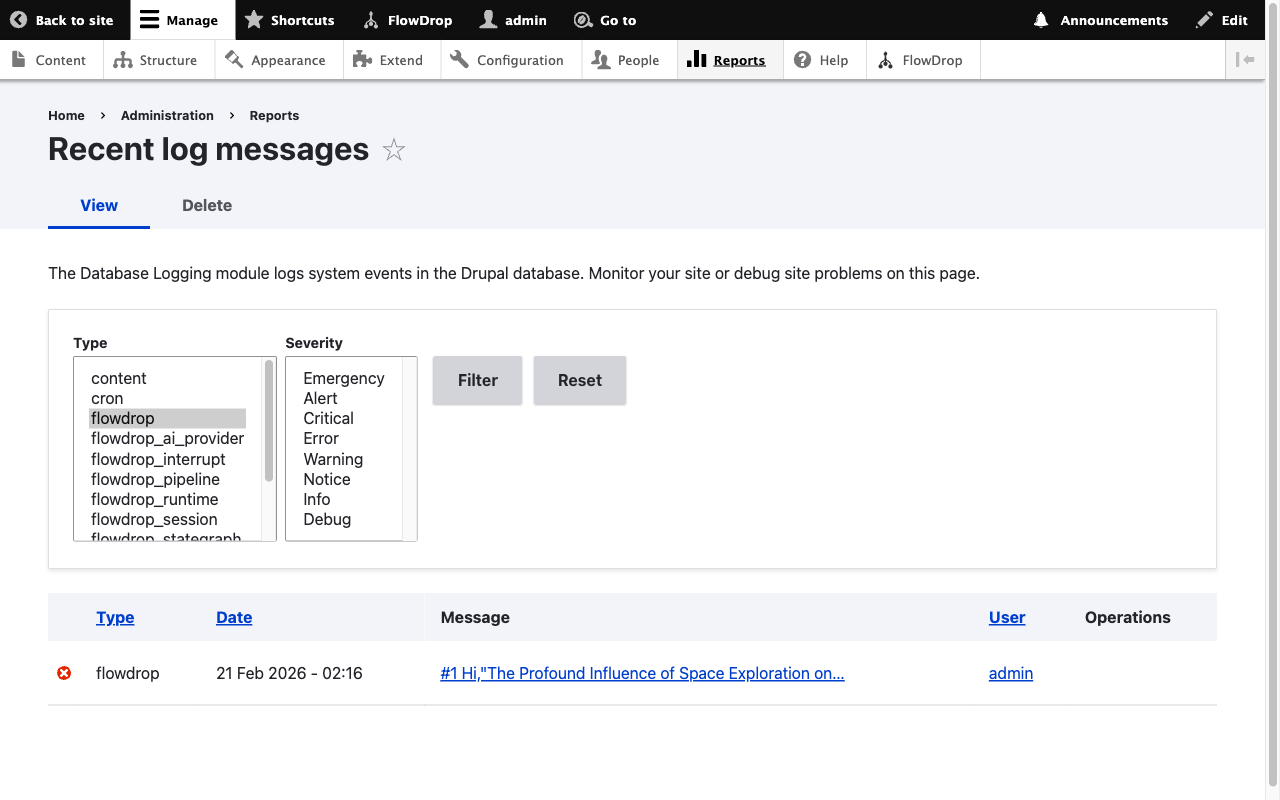

Drupal log messages filtered for FlowDrop

General¶

Permission denied¶

Ensure the current user has the appropriate permissions:

Permission	What it allows
`administer flowdrop`	Full access to workflows, pipelines, and FlowDrop admin
`administer flowdrop triggers`	Create, edit, and delete trigger configurations
`view flowdrop triggers`	View trigger configuration list and details

Permissions are managed at Administration > People > Permissions (/admin/people/permissions), filtering for "flowdrop".

How to clear the cache¶

drush cr

Or navigate to Administration > Configuration > Performance and click Clear all caches.

Where are the logs?¶

FlowDrop logs to Drupal's standard logging system (watchdog). View logs at:

UI: Reports > Recent log messages (/admin/reports/dblog) — filter by type flowdrop
Drush: drush watchdog:show --type=flowdrop
