Getting Started

Follow these simple steps to create and edit your first FlowDrop workflow.

Enable the module

  • Go to Extend (/admin/modules) and make sure the FlowDrop Workflow module is enabled.

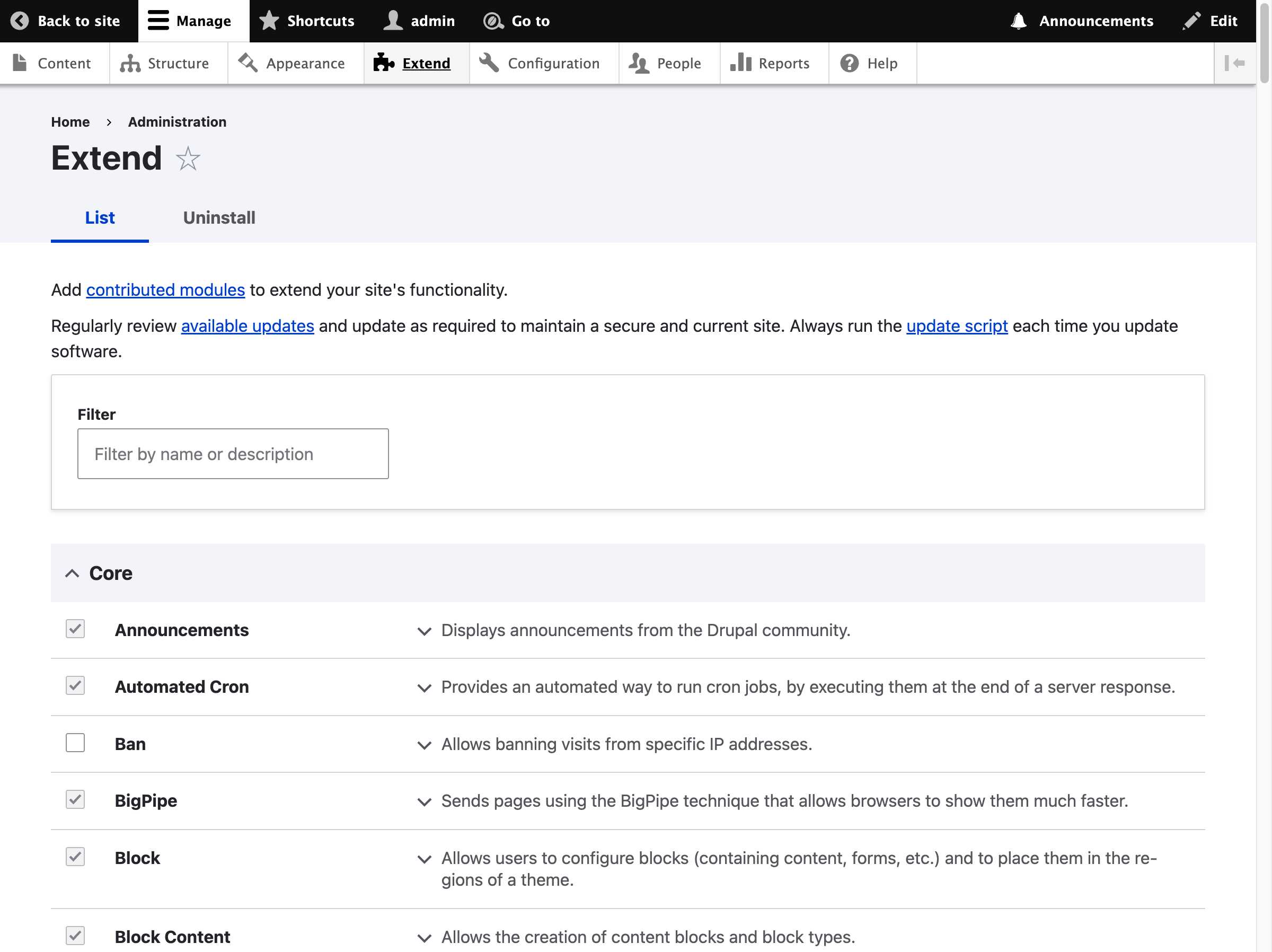

Modules page (FlowDrop section)

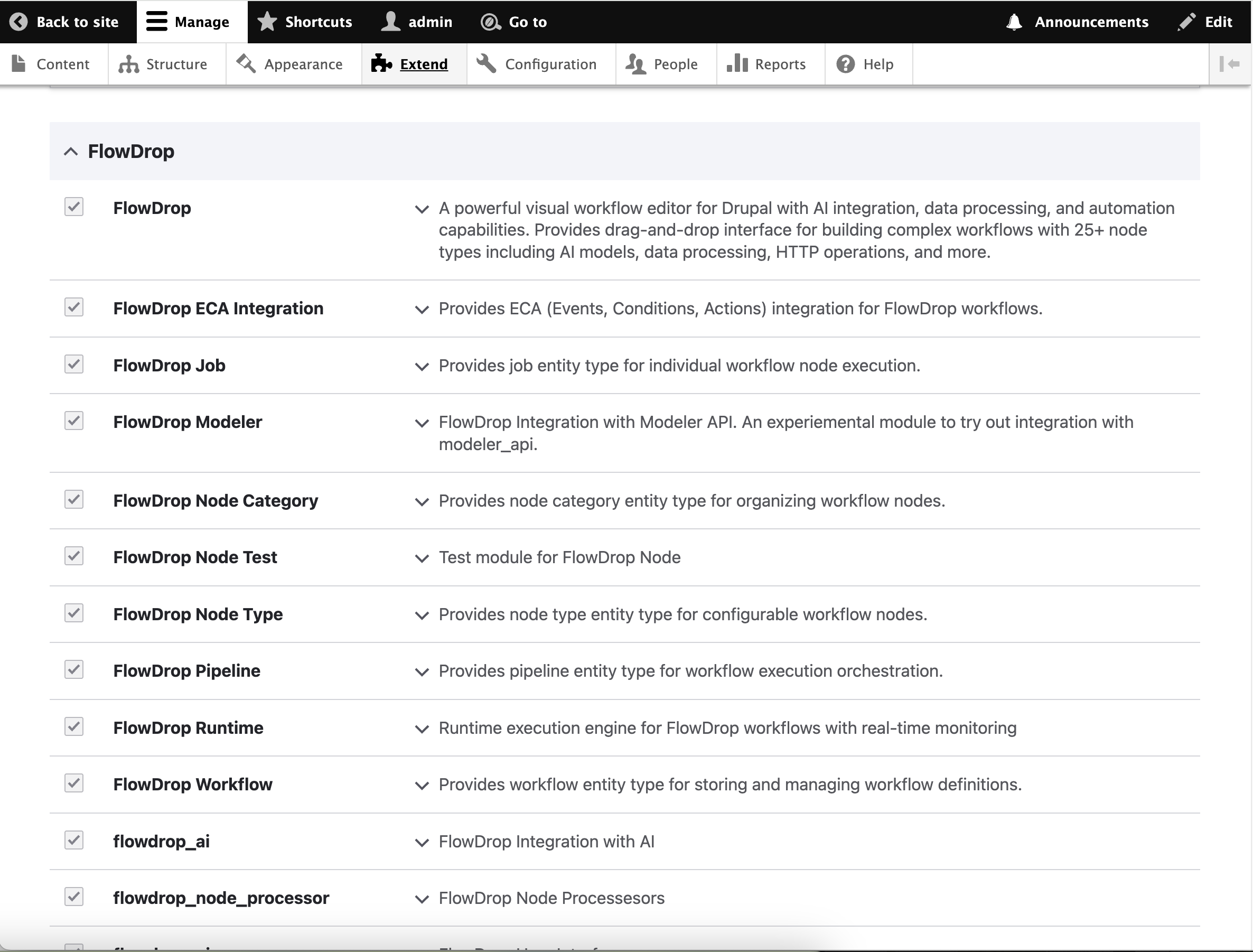

FlowDrop modules enabled

Create a workflow

  • Go to /admin/structure/flowdrop-workflow and click +Add flowdrop workflow.
  • Enter a Label and optional Description, then click Save.

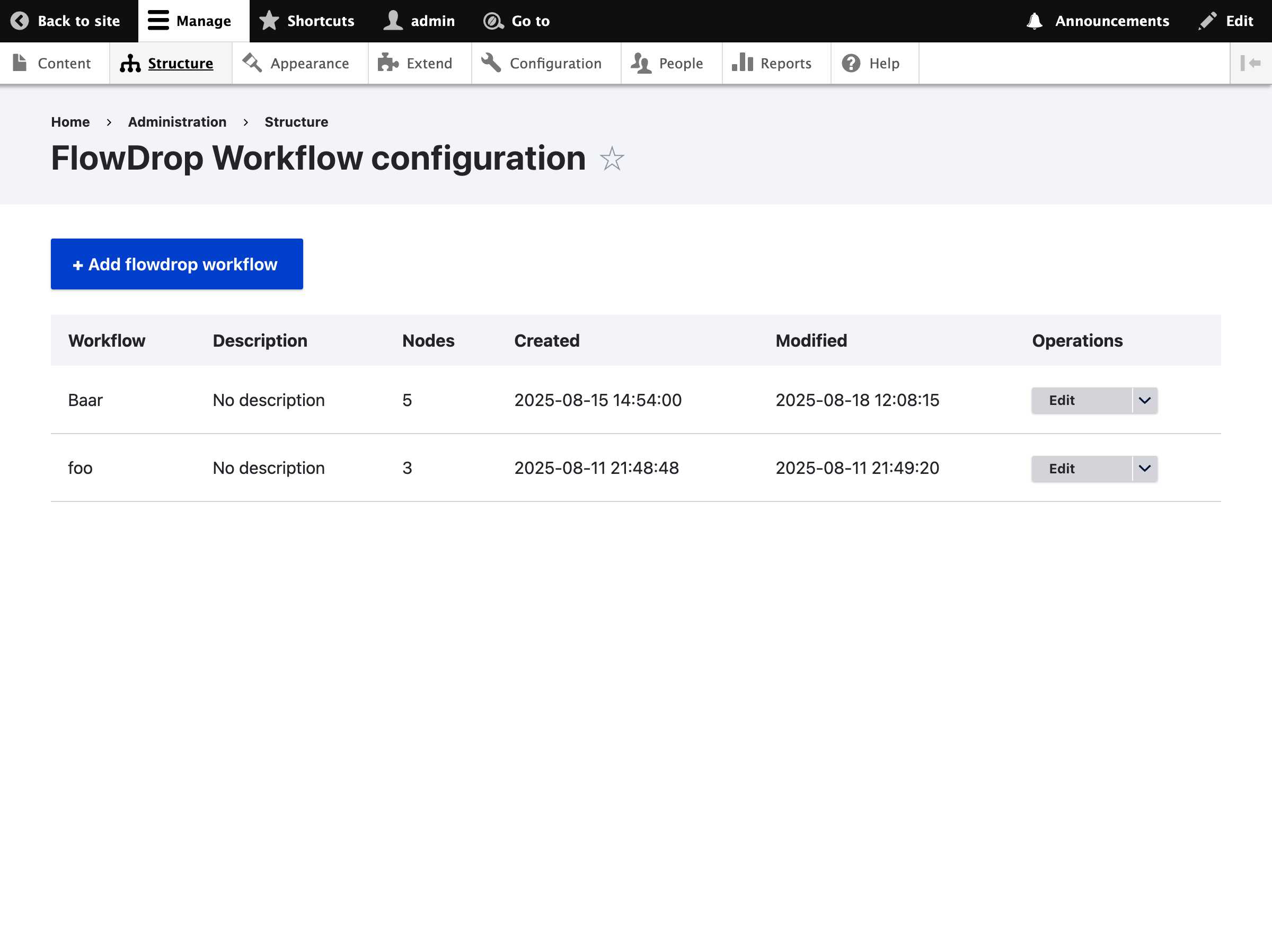

Workflow listing

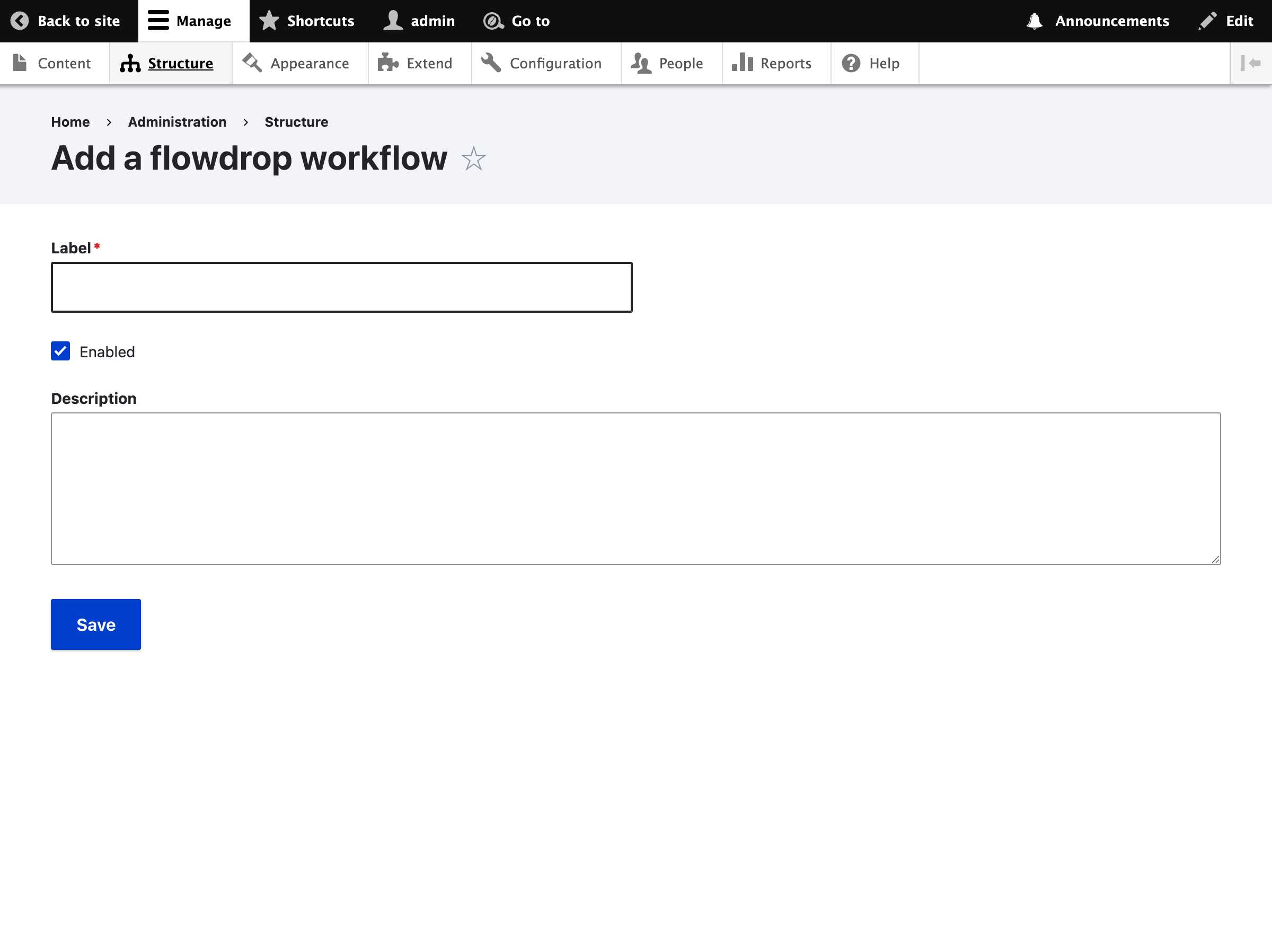

Add workflow form

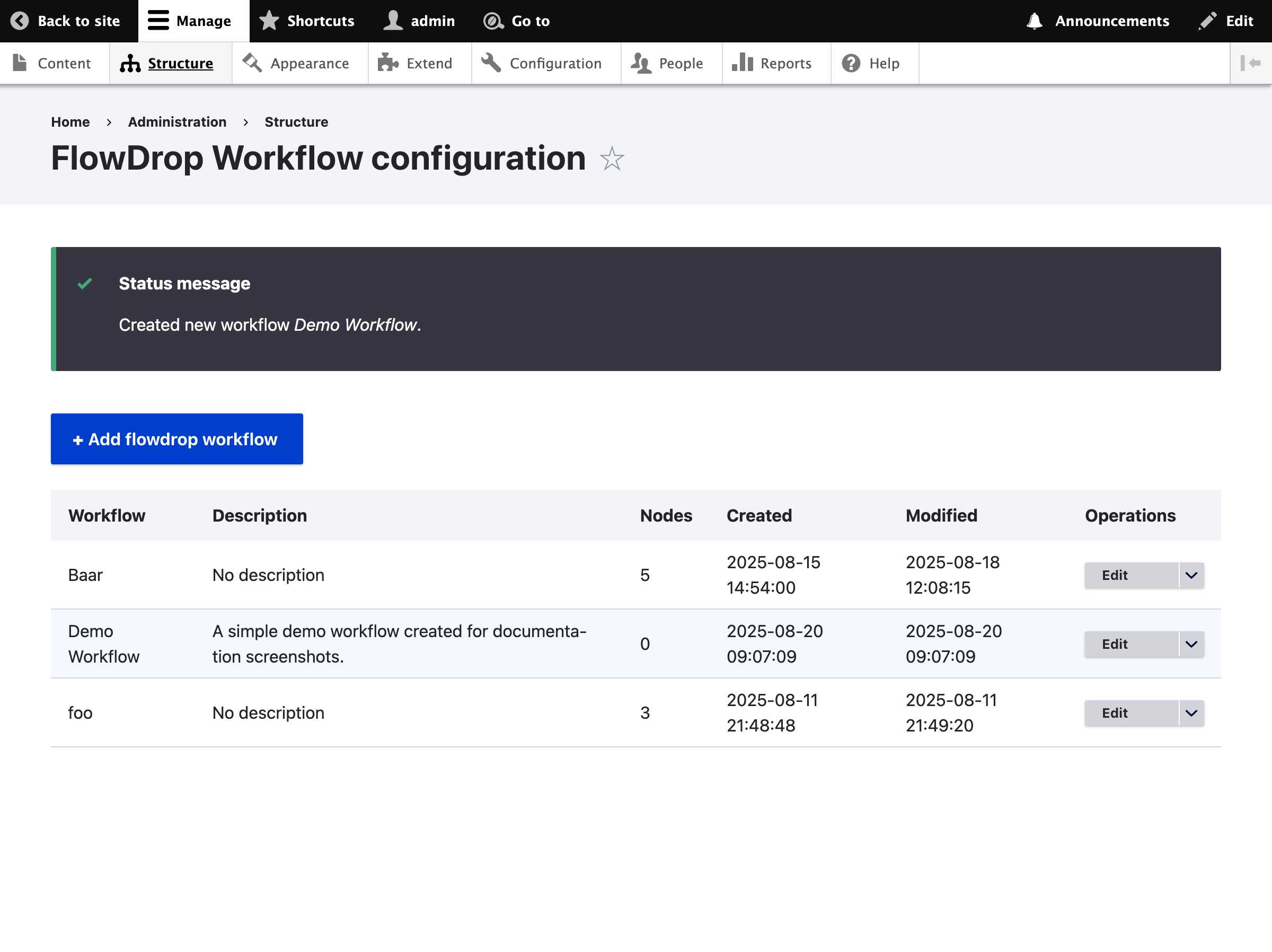

Workflow created

Open the workflow in the editor

  • From the workflow listing, open List additional actions and click Open in Editor.

Open in Editor action

Build and save

  • In the editor, drag components onto the canvas to build your workflow, then click Save.
  • Don't forget to click on "+" button on left side to see available nodes to drag and drop.

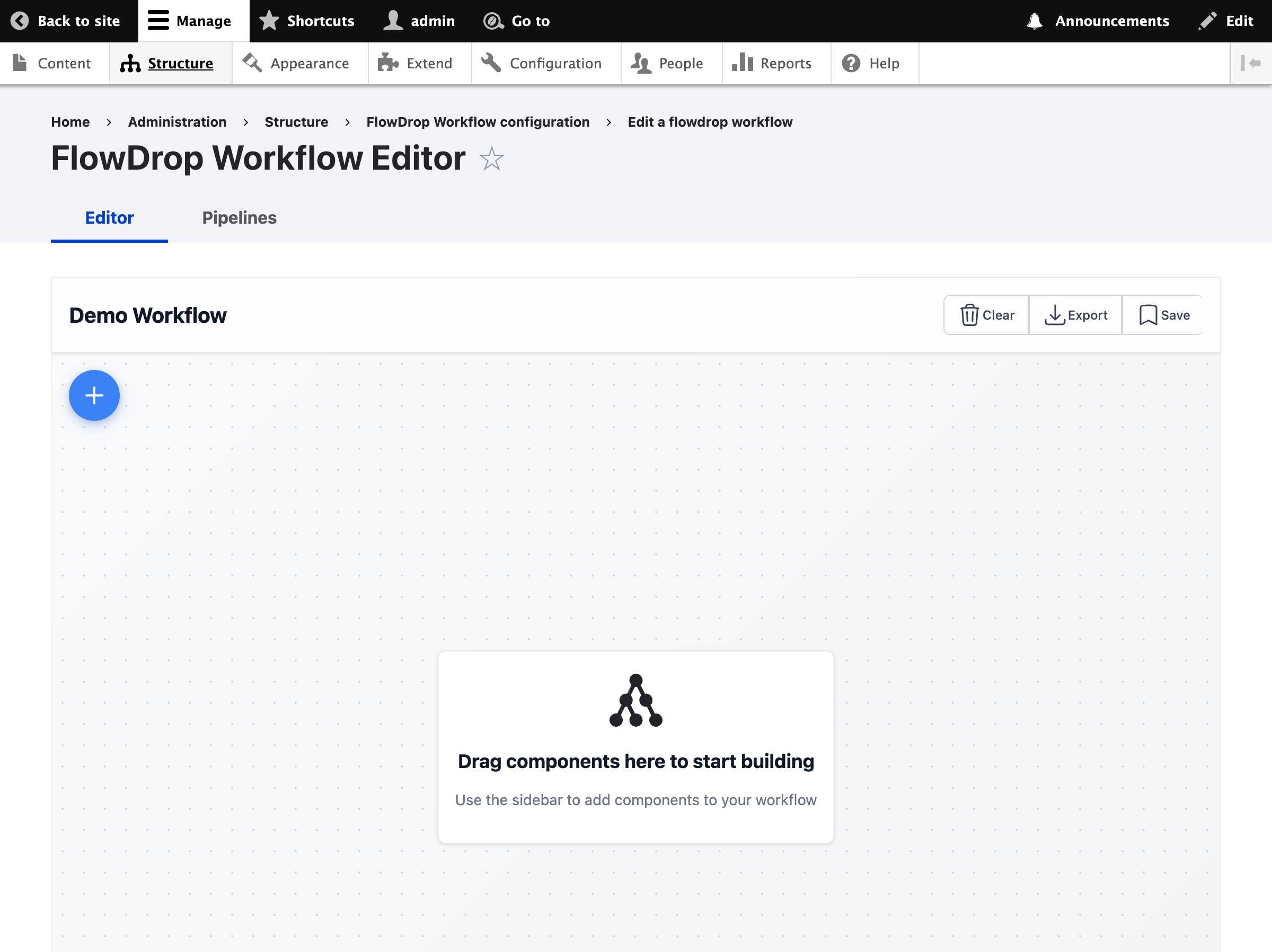

Workflow editor

What's Next?

  • Manage "FlowDrop node" by visiting "Structure >> FlowDrop Node Type" /admin/structure/flowdrop-node-type.
  • There is a 1:M relationship between FlowDrop Node Processor (defined in code) and "Flowdrop Node Type" This way, you can define one processor in code and have multiple Node type with different config. A very common business need.
